2 Channel DSP Digital Power Amplifier
TSP SERIES
. Powerful output 500-2800W 8 ohm per channel in small and compact shell space.
. Quality DSP module built-in
. PFC built-in. Universal power supply voltage range 90-264V. No worry about unstable power voltage.
. Compact structure of Class D PCB, SMPS Power supply module.
. Smaller size and lighter weight. Easy to install and move.
SPECIFICATIONS
| Model No. | TSP500 | TSP800 | TSP1800 | TSP2400 | TSP2800 | |
| Channel number | 2 channel | 2 channel | 2 channel | 2 channel | 2 channel | |
| Stereo Output power RMS | 8 ohm | 500Wx2 | 800Wx2 | 1800Wx2 | 2400Wx2 | 2800Wx2 |
| Stereo Output power RMS | 4 ohm | 800Wx2 | 1300Wx2 | 2800Wx2 | 3800Wx2 | 4500Wx2 |
| Stereo Output power RMS | 2 ohm | 1100Wx2 | 1500Wx2 | 3600Wx2 | 5000Wx2 | 5500Wx2 |
| Bridged output power RMS | 8 ohm | 1600W | 2600W | 5600W | 7600W | 9000W |
| Bridged output power RMS | 4 ohm | 2200W | 3300W | 7200W | 10000W | 11000W |
| Circuit Category | CLASS D | CLASS D | CLASS D | CLASS D | CLASS D | |
| Voltage Gain | 40.8/38.6/32 | 42.7/40.5/32 | 42.7/40.5/32 | 42.7/40.5/32 | 42.7/40.5/32 | |
| THD (total harmony distortion) | ≤0.035% (@ 8 ohm，1kHz，1/8 rated power) | |||||
| IMD（intermodulation distort.） | ≤0.15% (@ 8 ohm，1kHz，1/8 rated power) | |||||
| S/N Ratio (20Hz-20Khz,4 Ohms) | >106dB A | |||||
| Cross-talk (1kHZ, 4 Ohms) | >40dB | |||||
| Frequency response | 10Hz to 20k Hz,+/-1dB | |||||
| Input impedance | balanced 20K/ non-balanced 10K | |||||
| Damping factor (10-400Hz,8Ohms) | ≥600 | |||||
| Slew Rate | ≥20v/uS | |||||
| Input sensitivity | 0.775V,0dB | |||||
| Protection functions | Amplitude limit , and protections againts short circuit ,over-load, overheat, direct current, radio-interference , on/off switching and muting. | |||||

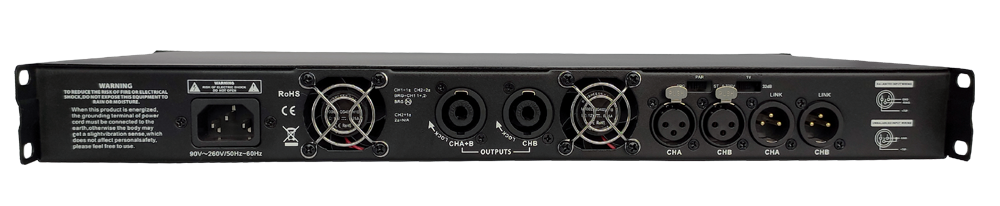

| Control knobs | Power ON/OFF switch，VOLUME control in front panel . STEREO/BRIDGE/MONO switch in rear panel . | |||||
| LED indicators | CLIP/-10dB/SIGNAL/MONO/BRIDGE/STATUS indicators in front panel | |||||
| Power delay | 4 seconds | |||||
| Input interface | XLR input socket | |||||
| Output interface | SPEAKON connector | |||||
| Dimensions (WxHxD) mm | 483x44x230 | 483x44x230 | 483x44x280 | 483x44x280 | 483x44x280 | |
| Net weight | 5.50kg | 6.35kg | 8.0kg | 8.7kg | 9.2kg | |
PRODUCT FEATURES
TSP series amplifier adopts advanced Class-D Power amplifier module and efficient SMPS power module, built-in DSP and completely controlled by digital mode,
The device is equipped with a USB to PC communication port, which can provide powerful power only in the standard chassis space with 1U height and 13 "depth.
This series is mainly aimed at high demand PA applications.
. Built-in with powerful and quality DSP module.The processor can accurately do routing, gain, phase, mute, parameter equalizing, delay, frequency division, compression and signal limit.
. Built-in with PFC, universal operating voltage 90-264VAC. No worry about unstable power voltage.
. Compact structure with only 1U height and 9" depth and light weight, easy to move and install.
. Fixed switch frequency Class-D PCB module.
. Soft resonant switching power supply LLC module.
. Unique peak clipping limiter and ripple Elimination.
. High efficiency R-SMPS power supply is adopted..
. Nice cooling system with quality fans to make wind flow front to the rear.

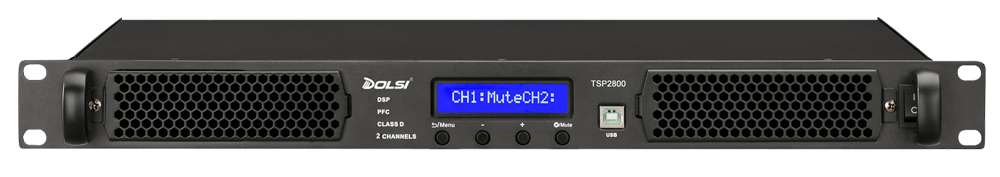

. Accurate volume control, switch on/off, signal, clip and protection LED light in front panel.
. Fully automatic protections against direct current protection, over heat, over load, on/off switching, RF, and amplitude limit.
. Good choice for applications in high power output power, for example, live show, outdoor event, stadium, flow performance ... etc.
