AT Series 4 Channel Universal Power Supply 90-265V PFC Digital Power Amplifier
    Publish time 2020-01-17 11:25
AT Series 4 Channel Universal Power Supply 90-265V PFC Digital Power Amplifier

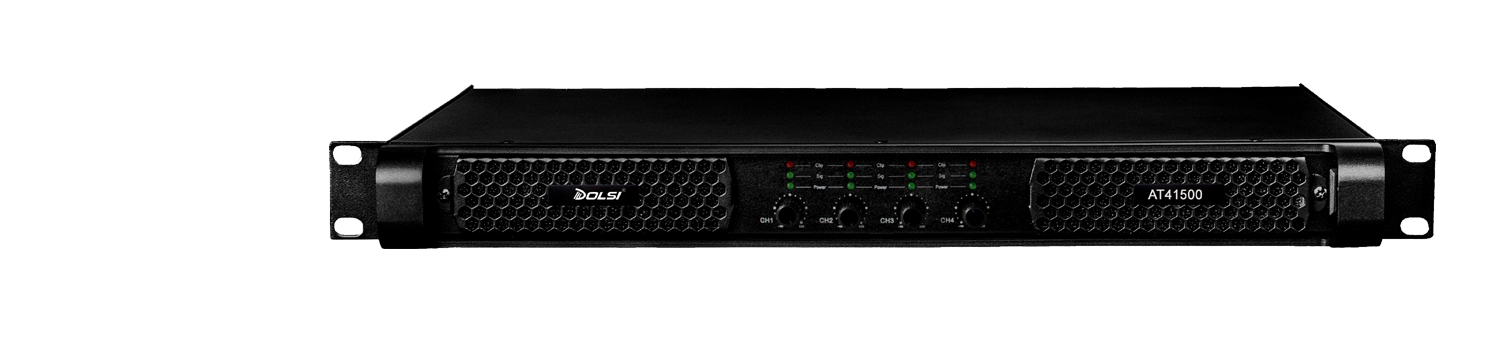

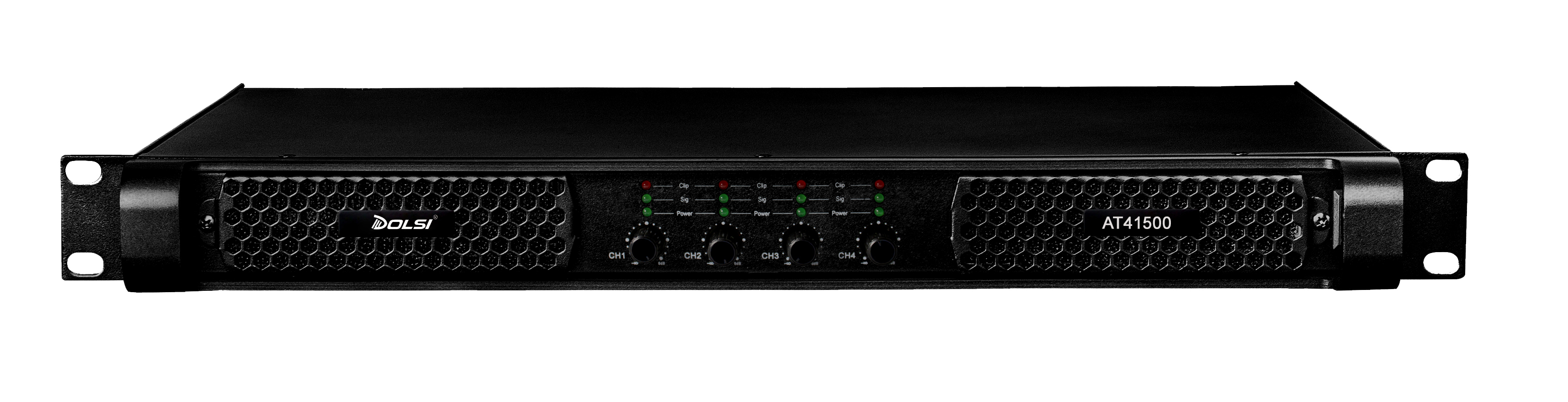

1U 4 Channel Universal Power Supply 90-265V PFC Digital Power Amplifier

AT SERIES

. Powerful output  580-2800W 8 ohm per channel in small and compact shell space.
. Universal power supply voltage range 90-264V. No worry about unstable power voltage.
. Compact structure of Class D PCB, SMPS Power supply module.
. Smaller size and  lighter weight. Easy to install and move.


                              SPECIFICATIONS

Model No. AT435 AT450 AT460 AT480 AT41000 AT41500 AT41800
Stereo Output power RMS 8Ω 350Wx4  500Wx4  650Wx4  800Wx4  1000Wx4  1400Wx4  1800Wx4
Stereo Output power RMS 4Ω 580Wx4 800Wx4 1050Wx4 1300Wx4 1650Wx4 2300Wx4 2800Wx4
Bridge Output power RMS 8Ω 1160Wx2 1600Wx2 2100Wx2 2600Wx2 3300Wx2 4600Wx2 5200Wx2
Voltage Gain 42.7/40.5/32
THD (total harmony distortion) ≤0.035% (@ 8Ω，1kHz，1/8 rated power)
IMD（intermodulation distort.） ≤0.15% (@ 8Ω，1kHz，1/8 rated power)
S/N Ratio (20Hz-20Khz,4 Ohms) >106dB A
Cross-talk (1kHZ, 4 Ohms) >40dB
Frequency response 10Hz to 20k Hz,+/-1dB
Input impedance balanced 20K/ non-balanced 10K
Damping factor (10-400Hz,8Ohms) ≥600
Slew Rate ≥20v/uS
Input sensitivity 0.775V,0dB
Protection functions amplitude limit and protections againts short circuit ,over-load, overheat, direct current, radio-interference , on/off switching, muting
Control knobs   power ON/OFF switch，VOLUME control in front panel . STEREO/BRIDGE/MONO   switch in rear panel .
LED indicators CLIP/-10dB/SIGNAL/MONO/BRIDGE/STATUS indicators in front panel
Power delay 4 seconds
Input interface XLR  input socket
Output interface SPEAKON connector
Dimensions (WxHxD) 483x44x230mm 483x44x230mm 483x44x230mm 483x44x230mm 483x44x230mm 483x44x381mm 483x44x381mm
Net weight  (KG) 5.2kg 5.5kg 5.9kg 6.5kg 6.8 9.80kg 10kg




PRODUCT FEATURES


DOLSI  AT Series 4 channel digital power amplifier with Class D circuit category, is a new milestone in amplifier development.
The amplifier is integrated with PFC( Power Factor Correction) and nice stability in voltage range 90-260V.

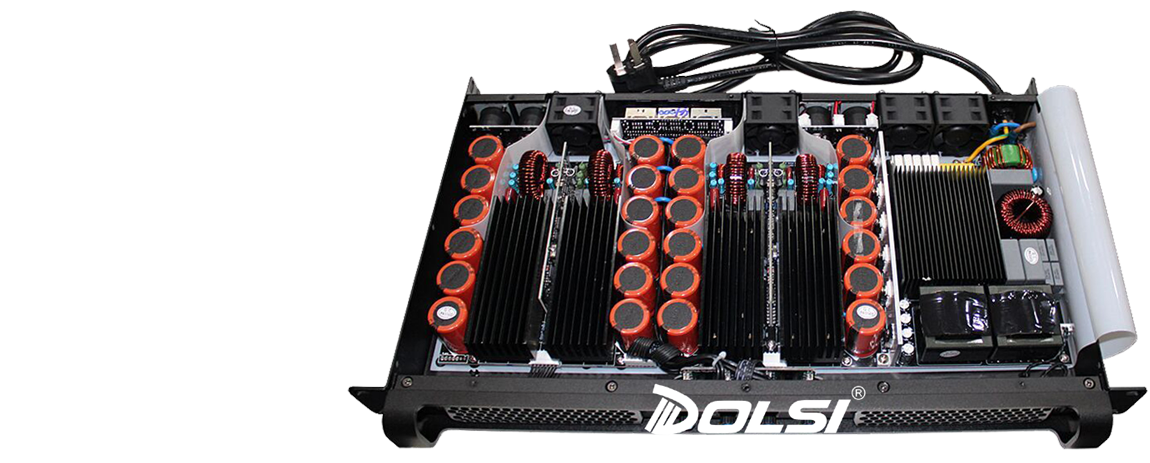

Advanced Class D PCB module and SMPS power supply module  are used to obtain high efficiency and stability.
It has very high power density, which makes the amplifier to reach powerful output in a very small shell space.


.  Unique and elegant enclosure design.
.  Compact structure with only 1U height and 9" depth and light weight, easy to move and install.
.  Fixed switch frequency Class-D  PCB module.
.  Soft resonant switching power supply LLC  module.
.  Active power factor correction technique (FPC), can work with high stability under full
   voltage range 90-264V .
.  High efficiency loudspeaker EMF absorption system.
.  Unique peak clipping limiter and ripple Elimination.
.  Low electricity consumption.
.  Nice cooling system with quality fans to make wind flow  front to the rear.
.   Accurate volume control, switch on/off, signal, clip and protection LED light  in front panel.
.   Fully automatic protections against  direct current protection, over heat, over load, on/off switching, RF and amplitude limit.
.   XLR balance input and professional SPEAKON output connectors.
.   Stereo ,bridge and mono mode selection pull switch is set on back panel.
.   Good choice for applications that need high power output , for example, live show, outdoor event, stadium, flow performance ... etc.
