M Series 2-4 channel Class D High Stablility Digital Power Amplifier
Publish time 2020-01-17 12:10

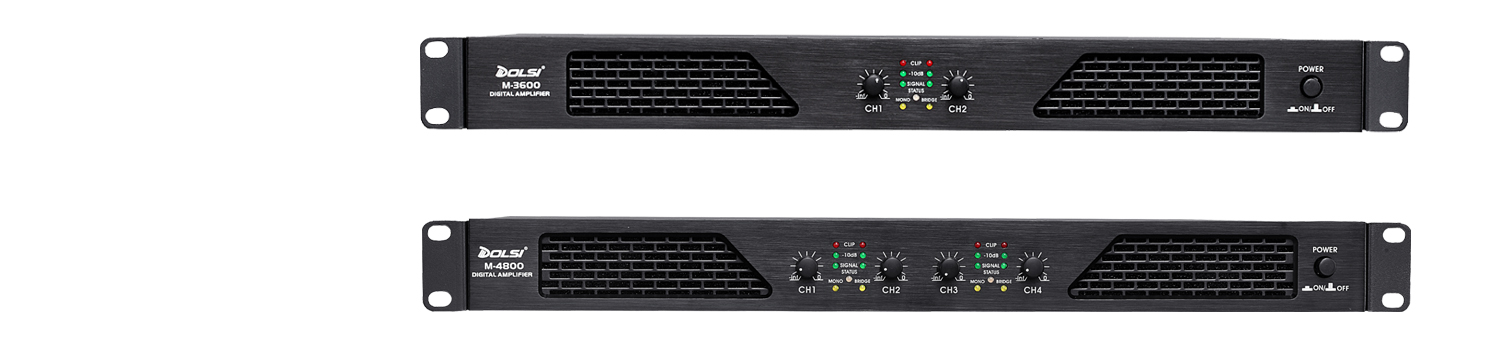

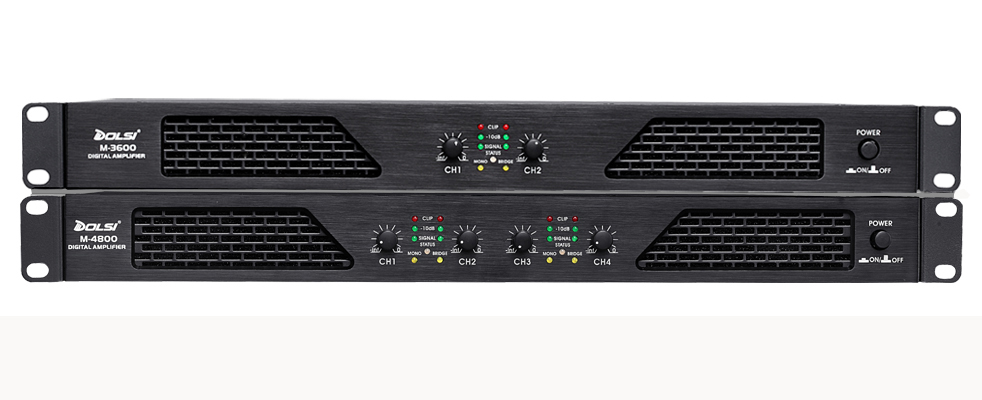

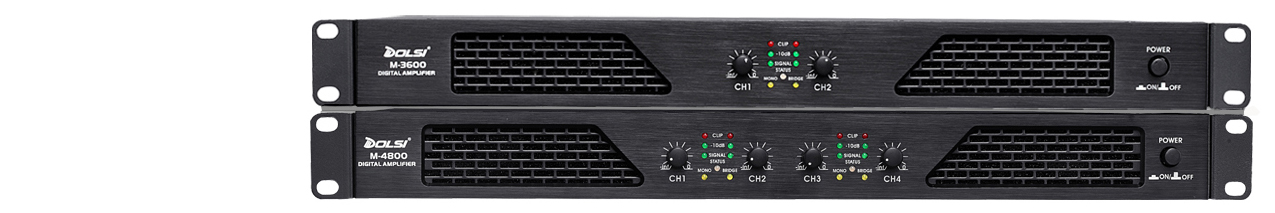

2-4 channel Class D High Stability Digital Power Amplifier M3600/M4800

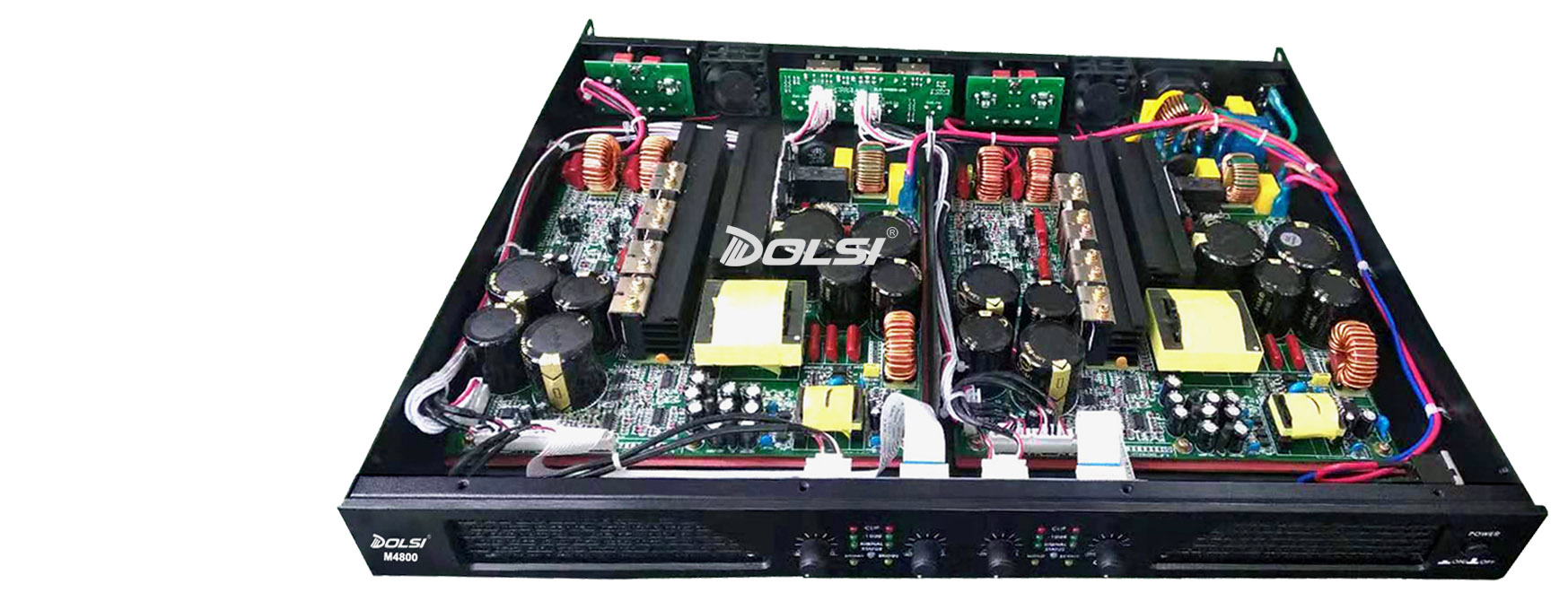

. Powerful output in small and compact shell space. . Long lasting stability and high durability . Compact structure of Class D PCB, SMPS Power supply module. . Smaller size and lighter weight. Easy to install and move.
. Built with well selected quality components and parts.
Specifications
Model No.
M3600
M4800
Channel number
2 channel
4 channel
Circuit category
Class D
Class D
Height
1U (44mm)
1U (44mm)
Output power at 4Ω
500Wx2
500Wx4
Output power at 8Ω
300Wx2
300Wx4
Bridge output power at 8Ω
1000W
1000Wx2
Distortion ( 1kHZ,10 dB/4 Ohms)
＜0.2%
S/N Ratio (20Hz-20K hz,4 Ohms)
＞112dBA
Cross Talk (1k HZ, 4 Ohms)
＞35 dB
Frequency response
10Hz to 20k Hz,+/-1dB
Input Impedance
balanced 20 K/ non-balanced 10 K
Damping factor(10-400 Hz, 8 Ohms)
>300
Sensitivity
0dB
Protections
Protections against short circuit ,over-load, overheat, direct current, radio-interference , on/off switching，muting and amplitude limit.
Control Knobs
Power on/off switch in front panel, gain control in front panel, Mono and bridge selection on rear panel
Led lights
Clip/-10 dB/signal/Mono/bridge/Status/Active/Protect indication light on front panel
Air flow
The air flow is from front to back of the amplifier.
Power delay
4 seconds
Input connector
XLR
Output connector
SPEAKON
Dimension (WxHxD)
483x44x350 mm
483x44x350 mm
PRODUCT FEATURES
. DOLSI exclusive design. Powerful output and long lasting stability. . 1 unit rack size and light weight, easy to move and install. . Class D Toplogy integrated with switch power supply design. . High efficiency and Low electricity consumption. . Fully automatic protections against short circuit ,over-load, overheat, direct current, RF, on/off switching, muting, and amplitude limit. . Stereo ,bridge and mono mode selection switch is set on back panel.
