6-8 channel Class D High Stablility Digital Power Amplifier
Publish time 2020-01-17 13:32

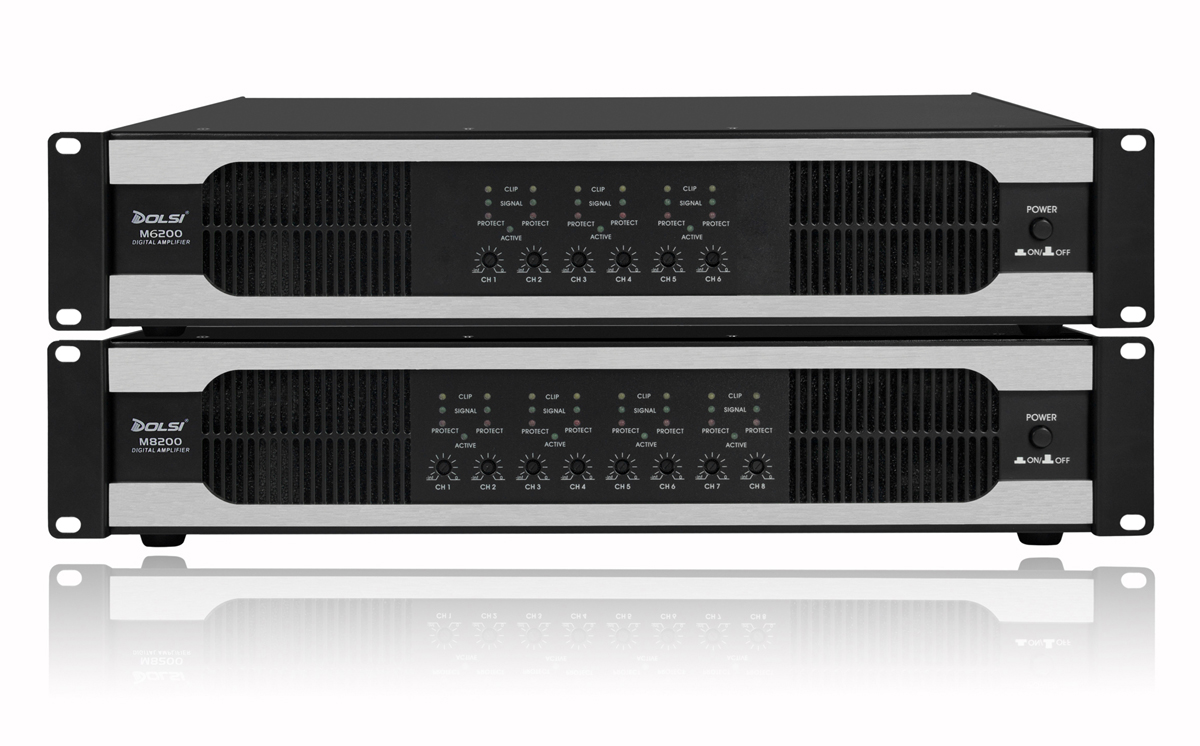

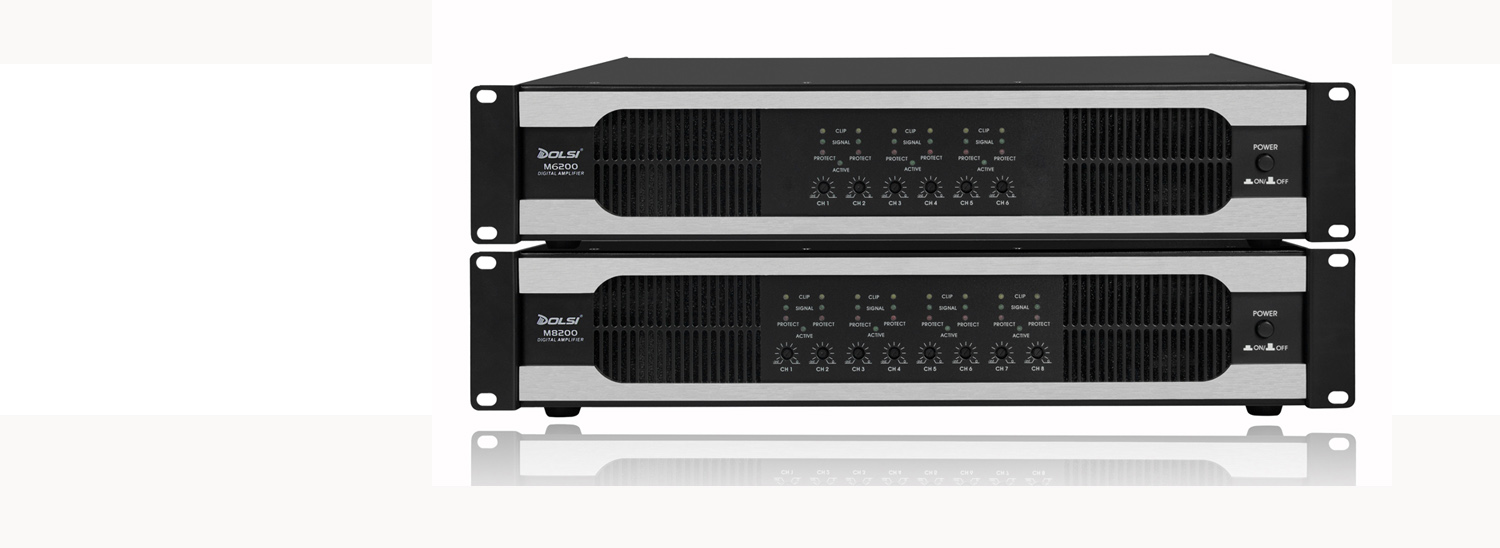

6-8 channel Class D High Stability Digital Power Amplifier
M6200/M8200
. Powerful output in small and compact shell space. . Long lasting stability and high durability . Compact structure of Class D PCB, SMPS Power supply module. . Smaller size and lighter weight. Easy to install and move. . Built with well selected quality components and parts.
Specifications
Model No.
M6200
M8200
Height
2U (88mm)
2U (88mm)
Channel number
6 channel
8 channel
Circuit category
Class D
Class D
Rated Output power at 4Ω
500Wx6
500Wx8
Rated Output power at 8Ω
300Wx6
300Wx8
Rated Bridge output power at 8Ω
1000Wx3
1000Wx4
Voltage Gain
40dB
THD ( 1kHZ,=10dB/4 Ohms)
＜0.2%
S/N Ratio (20Hz-20Khz,4 Ohms)
＞112dBA
Cross Talk (1kHZ, 4 Ohms)
＞35dB
Frequency response
10Hz to 20k Hz,+/-1dB
Input Impedance
balanced 20K/ non-balanced 10K
Damping factor(10-400Hz,8Ohms)
>300
Sensitivity
0dB
Protection
Protections against short circuit ,over-load, over-heat, direct current, radia-interference , on/off switching, muting, and amplitude limit.
Control Knobs
Power on/off switch in front panel, gain control in front panel, Mono and bridge selection on rear panel
Led lights
Clip/-10dB/signal/Mono/bridge/Status/Active/Protect indication light on front panel
Power delay
4 seconds
Air flow
The air flow is from front to back of the amplifier.
Input connectors
XLR
Output connectors
SPEAKON
Dimension (WxHxD)
483x88x350mm
Net Weight
11.2kg
12.45kg
PRODUCT FEATURES
. DOLSI exclusive design. Multi-channel. Good choice to connect to more speaker units. . 2 U height,light weight and easy to move and install. . Class D Toplogy integrated with switch power supply design . Low electricity consumption. .Fully automatic protection against short circuit ,over-load, overheat, direct current, RF, on/off switching, muting, and amplitude limit. . Stereo ,bridge and mono mode selection switch is set on back panel.
