70-100V 2-4 Channel Class D Constant Voltage Digital Power Amplifier
    Publish time 2020-01-17 15:18
70-100V 2-4 Channel Class D Constant Voltage Digital Power Amplifier
70-100V Class D Dual Purpose Constant Voltage Constant Resistance Digital Amplifier

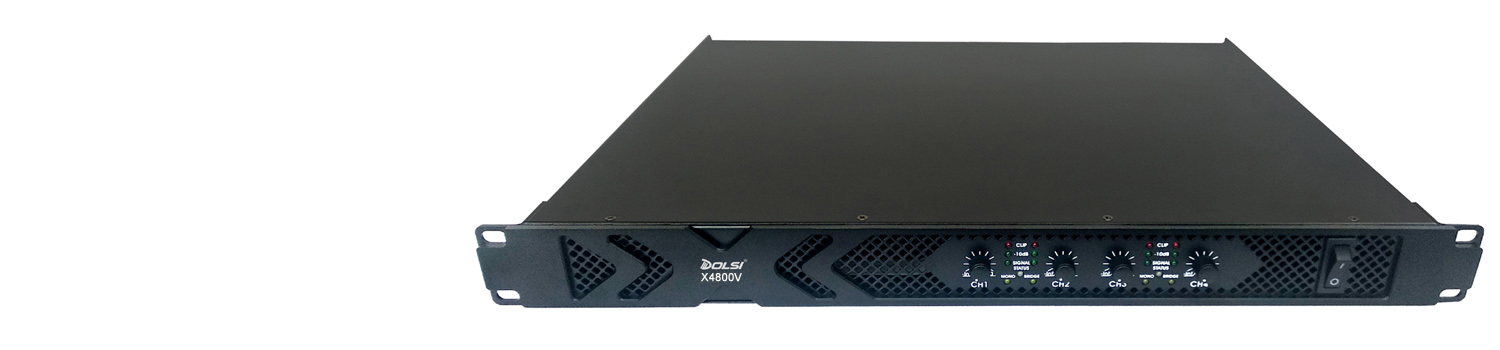

X3600V/X4800V

. Unique circuit design integrated constant voltage(70-100V) & constant resistance (4 ohm)
. Applications in both public addressing  system and commercial audio system.
. Long lasting stability and high durability
. Compact structure of Class D PCB, SMPS Power supply module.
. Smaller size and  lighter weight. Easy to install and move.








                                                    SPECIFICATIONS

Model No. X3600V X4800V
Channel number 2 channel 4 channel
Circuit category Class D Class D
Height 1U (44mm) 1U (44mm)
Output power at 4Ω 500Wx2 500Wx4
Output power at 8Ω 300Wx2 300Wx4
Bridge output power at 8Ω 1000W 1000Wx2
70-100V circuit 800W 2x800W
Distortion ( 1kHZ,=10dB/4 Ohms) ＜0.2%
S/N Ratio (20Hz-20Khz,4 Ohms) ＞112dBA
Cross Talk (1kHZ, 4 Ohms) ＞35dB
Frenquency response 10Hz to 20k Hz,+/-1dB
Input Impedanace balanced 20K/ non-balanced 10K
Damping factor(10-400Hz,8Ohms) >300
Sensitivity 0dB
Protection Amplitude limit  and fully automatic protections  against direct current, over-heat, over-load , over-voltage, short circuit, radio-interference , on/off switching and muting.
Control Knobs Power switch and Gain/Volumn Control knobs are in front panel. Output mode selection dial switches for Stereo, Bridge, Mono  and constant voltage 100V are in rear panel.
LED Indicators  LED indicators for Stereo Mode /Power On, Signal level, Bridge/Mono mode, Protect and Clip LED are in front panel. 100V Mode indicator LED is in rear panel.
Power delay 4 seconds
Input connector Phoenix connectors
Output connector Phoenix connectors
Dimension (WxHxD) 483x44x350mm
Net Weight 4.95kgs 6.30kg









                                                 PRODUCT FEATURES
1. Unique circuit design integrated constant voltage(70-100V) & constant resistance (4 ohm above) ,X3600V and X4800V are  created as dual-purpose class D digital power amplifiers.  They can be used for the applications in both public addressing  system and commercial audio system.
2. There are four types of wiring mode selection. Stereo mode, bridge mode and mono mode are used for commercial audio purpose. 100V mode is used  for public addressing purpose.
3.1U height, very light weight, easy to move and install.
4.Class D  topological structure and  integrated switch mode power supply design.
5. High efficiency circuit  conversion, strong output power, and  low  power consumption.
6. Automatic protection functions, including amplitude limit  and protections against direct current, over-heat,  over-load , over- voltage, short circuit, radio-interference ,  on/off switching and muting.
7.High quality fan for heat dissipation and exhaust . The air flows from front to back.
8. High quality and well selected parts and components with  international certifications.





For more product details, please do contact our sales team.
