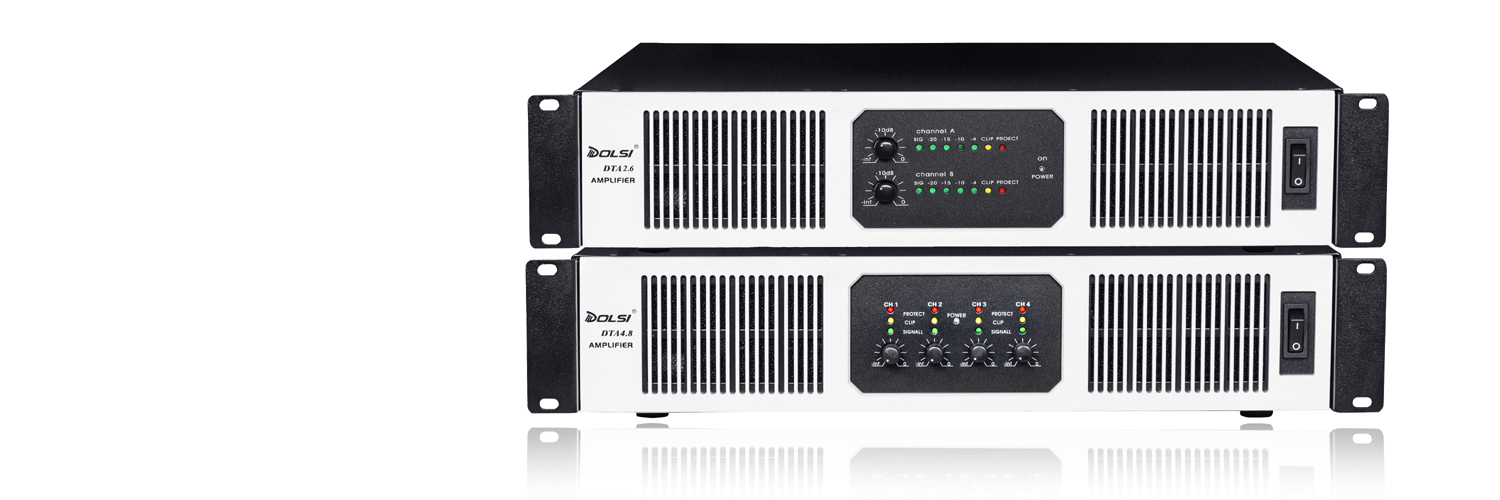

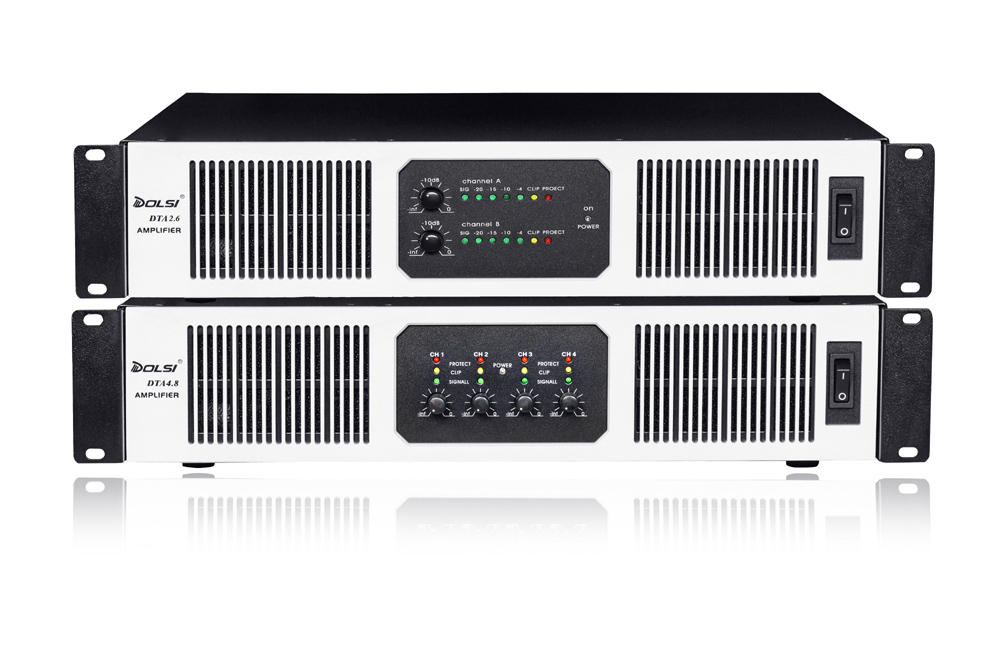

DTA SERIES 2-4 channel 400-1200W 8 ohm Class H High Stability SMPS Power Amplifier
. Powerful output in small and compact shell space. . Long lasting stability and high durability . Compact structure of Class H PCB, SMPS Power supply module. . Smaller size and lighter weight. Easy to install and move.
SPECIFICATIONS
Model No.
DTA2.5
DTA2.6
DTA2.8
DTA4.5
DTA4.6
DTA4.8
DTA4.12
4Ω stereo output power
2x750W
2x1000W
2x1200W
4x700W
4x1000W
4x1200W
4x1800W
8Ω stereo output power
2x400W
2x600W
2x800W
4x400W
4x600W
4x800W
4x1200W
8Ω bridge output power
1200W
1800W
2300W
2x1100W
2x1800W
2x2300W
/
Voltage Gain
32.8dB
32.8dB
33dB
33dB
35dB
35dB
35dB
Frequency Response
20Hz-20kHz,+0/-3dB
Total Harmonic Distortion(THD)
<0.026%,1kHz
IMD
≤0.2% 8Ω,1KHz@1W
Slew Rate
≥30V/μS
Damping Factor(8 ohm),10Hz-400Hz
≥600:1
Signal-to-Noise Ratio
>100dB
Cross-talk
>70dB @ 1KHz
Input sensitivity
0.775V/1.0V/1.4V
Input Impedance
Balanced 20K ohm, Non-balanced 10K ohm
Protections
Voltage limit, and protection against direct current,over-heat,over-load,short circuit,on/off delay and Rf interference.
Dimensions(WxHxD)
483x88x335mm
483x88x385mm
Net weight
7.8kg
8.2kg
9.8kg
PRODUCT FEATURES
DTA Series adopt full bridge (SMPS) switching mode power supply with high efficiency and stability, third grade CLASS-H audio amplifier circuit. Both 2 and 4 channel are available. The main features are as the following: . The aluminium front panel. Very light in weight and easy to install. .Well-crafted machine with compact structure. .Strong output power and applicable to a variety of applications. . Integrated circuit ensuring excellent and independent output for the multi-region sound reinforcement system. .Advanced and full protection circuit against short-circuit, broken circuit, direct current, error matching, over-heat and no-load. .Well selected and strong material of inside components and the enclosure. Good anti-vibration. .Long-lasting performance stability .Good cooling system with automatic speed fan with high efficiency of heat dissipation. .Accurate, and clean sound quality with very low distortion. . Speakon® socket, binding post output connector, XLR input connector and speaker parallel connector. .Well tested by AP testing machine to ensure strong stability.
