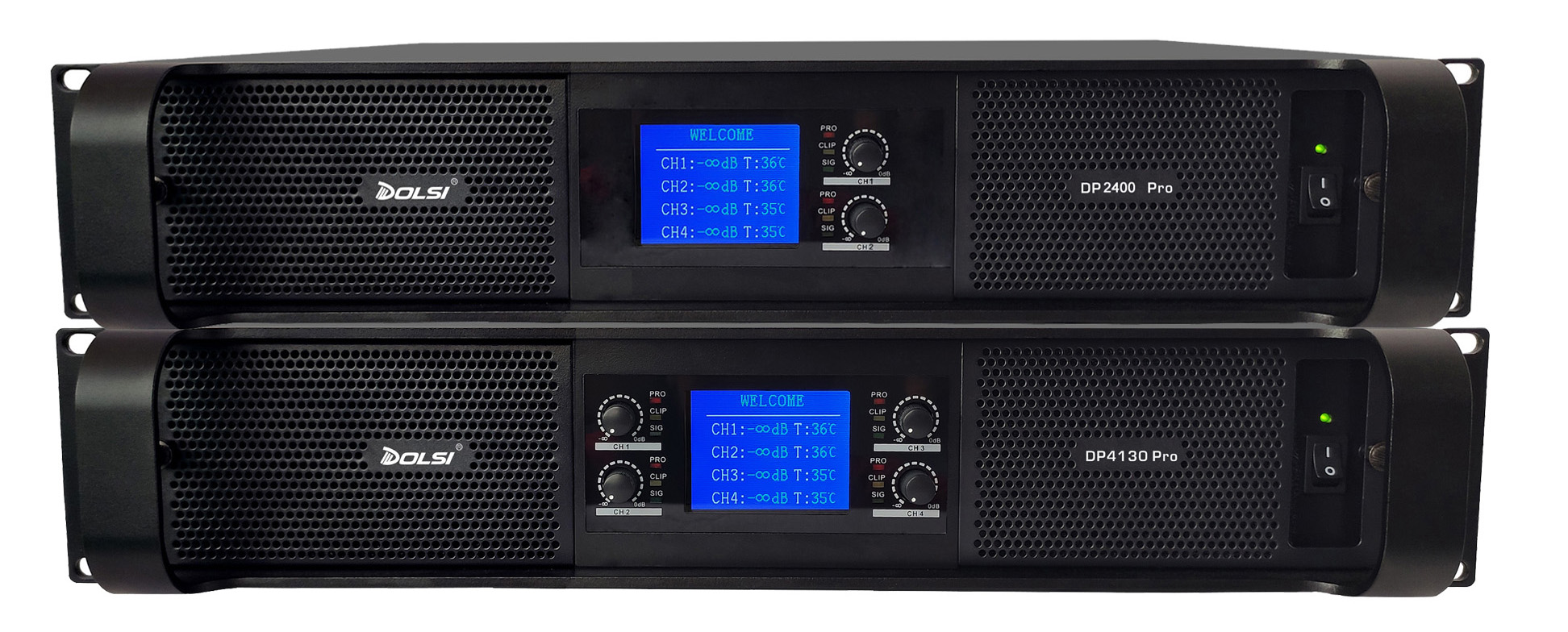

DP Series 1350-2400 Watt 8 ohm Class H High Stability SMPS Power Amplifier
    Publish time 2020-01-17 16:47
DP Series 1350-2400 Watt 8 ohm Class H High Stability SMPS Power Amplifier
DP Series

Class TD 1350-2400 Watt 8 ohm Per Channel High Stability SMPS Power Amplifier


. Powerful output in small and compact shell space.
. Built with well-selected good quality parts and components
. Long lasting stability and high durability
. Compact structure of Class H PCB, SMPS Power supply module.
. Smaller size and  lighter weight. Easy to install and move.




                                               SPECIFICATIONS

Model No. HP13000 HP8000
Channel Number 4 2
Stereo rated output power at 4Ω 4x2100W 2x4400 W
Stereo rated output power at 8Ω 4x1350W 2x2400 W
Stereo rated output power at 16Ω 4x550W 2x1150W
Circuit Category Class TD Class TD
Output Voltage of the output module 150V 150 V
Output Current  of the output module 20A 20 A
THD @ ≤ 1kHz,1dB < 0.008 %
THD  @ 20Hz-20kHz  1W < 0.05 %
S/N Ratio > 112 dBA
 Cross Talk @1KHz > 70 dB
Frequency Response                                                                                                                               FR: +/- 0.05 dB @1W  8Ohm,20 Hz-20kHz
Damping Factor > 400 8oh
Input feature high quality input and ISO floating isolation
Input resistance  Balanced 20K  / Non-balance 20K
Votage Gain 23, 26, 29, 32, 35, 38, 41, 44 dB
Bridged Output    Channel 1 +Channel 2 :  input at Channel 1                                                                                             Channel 3 + Channel 4  : input at Channel 3

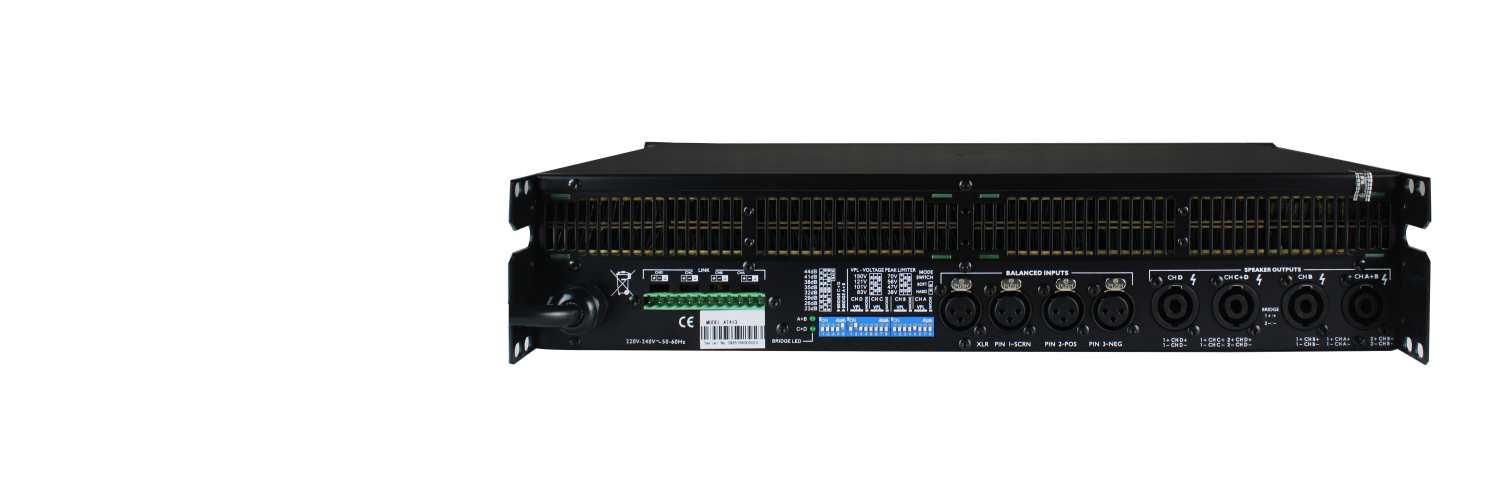

Input Connectors  4×3 Pins XLR  banlanced inputs on  rear panel
Onput Connectors  speakon Neutrik（1 x nlt8，combined 2 x nlt4）or 4 binding posts
 Cooling  four fans, front-rear airflow, temperature controlled speed
Power ON/OFF Switch  in front panel
Control 1 piece of step level attenuator at every channel
Protection Functions amplitude limit and protections againts short circuit ,over-load, over-heat, direct current, radio-interference , on/off switching, muting ,power supply under-voltage, over-voltage and power failure.
Indicators  Independent LED light for each channel,                                                                                                  Voltage Peak Limiter（VPL）, Current Peak Limiter（CPL), Very High Frequency (VHF), High-temperature Indicator, Fault indicator, Mute indicator
Soft start power supply  Maximum 5A
Stable voltage switching power supply  Yes
Baer maximum current threshold 25 A
Product Dimensions ( WxHxD) 483x88x485
Product Net Weight  13KG 13KG











PRODUCT FEATURES:

. Very strong output power & stable working performance.
. Stable switching mode power supply
. Compact structure of circuit and component assembly.
. Small size and light weight, easy to move and install.
. Well selected quality components and parts, even a piece of  power supply cord.
. Combination of high efficiency similar as Class TD circuit and genuine, pure and bright sound effect of traditional Class B.
 .Pure copper radiator. Nice cooling system with 4 fans, front-rear airflow, temperature controlled speed.
. Fully automatic protection against short circuit ,over-load, over-heat, direct current, radio-interference , on/off switching,
muting ,power supply under-voltage, over-voltage and power failure.
. Strong output power. A piece of HP20000 can even drive four pieces of 21" sub-woofer box !
. Good choice for any high power output needed applications, large space outdoor events, stage performance , stadium, etc...
