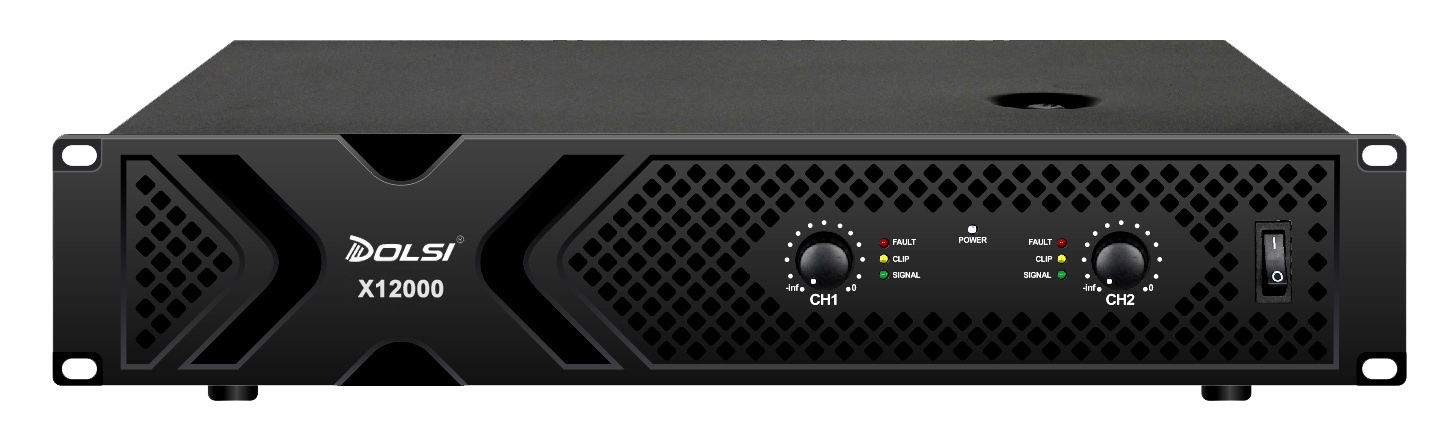

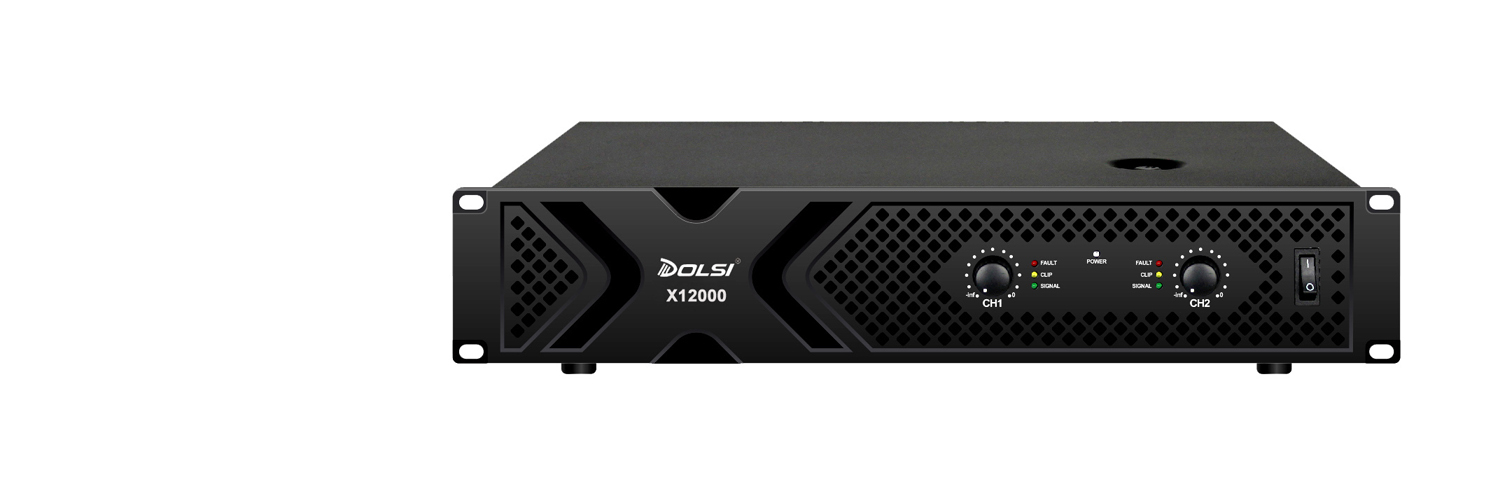

X Series 2 Channel Class-H 400-1200W 8 ohm Power Amplifier
    Publish time 2020-01-17 17:17
X Series 2 Channel Class-H 400-1200W 8 ohm Power Amplifier
X SERIES

2 channel 400-1200W 8 ohm Per Channel Class H High Stability Power Amplifier

.2x400W at 8 ohm to 2x1200W at 8 ohm available
.Excellent stability and good heat cooling system,
. Low distortion rate, genuine and clear sound effect
.Built with well selected quality components and parts
.Nice workmanship and good construction of the board and whole system



                                          SPECIFICATIONS


 Model No.    X4000    X6000    X8000  X10000  X12000
Channel number 2 2 2  2  2
Height  88 mm ( 2U) 88 mm ( 2U) 88 mm ( 2U) 88 mm ( 2U) 88 mm ( 2U)
Output power stereo 4 ohm   600Wx2   900Wx2   1200Wx2   1350Wx2  1800Wx2
Output power stereo 8 ohm  400Wx2    600Wx2   800Wx2  1000Wx2  1200Wx2
Bridged output at 8 ohm     1200W     1800W    2300W    2700W    3000W
Voltage Gain 31dB 33dB 34dB 36dB 36dB
  Inputs   0db(0.775V rms) 1.0V/26dB
 Frequency response   20-20000Hz(±0.3dB)
 Slew rate   ≥10V/us
 Damping factor   ≥200:1 (10Hz-400Hz)
 Cross talk   -75dB@1KHz
 S/N ratio   ＞100 dB
 THD+N   ＜0.5%, 20-20K Hz
 IMD    ≥ 0.35%
Protection Protection against short circuit, over-load, over-heat, switch on/off and radio frequency interference or mismatched load.
 Dimensions (WxHxD) mm 483x88x360 mm 483x88x360 mm 483x88x360 mm 483x88x360 mm 483x88x360 mm
Net Weight  12.60kg 13.20kg 14.50kg 15.30kg 20.50kg







PRODUCT FEATURES:


X Series are the amplifiers with efficient and stable Class-H circuit optimized by DOLSI team.
The harmonic distortion, inter-modulation distortion and transient inter-modulation distortion
all decrease to the lowest level by adding an efficient function of signal conversion, which
brings a perfect amplification to the sound. Integrated component layout, strong and
compact structure, well-crafted workmanship. All these enable outstanding performance
in a variety of application including small meeting room, KTV room or large stadium,
vocal concert, etc. The main features are as the following:

. Unique, novel and elegant design.
. Small size, light weight but high efficiency and high quality sound.
. Carefully-selected high quality components. 100% quality inspection from material
to finished product.
. Full protection against short circuit, over-load, over-heat, mismatch, switch on/off
and radio frequency interference.
. Air force cooling system and automatic speed fan to ensure long-lasting work stability.
.Ground-lift technology.
.Carefully tested by professional AP testing machine to ensure the consistency and reliability.
