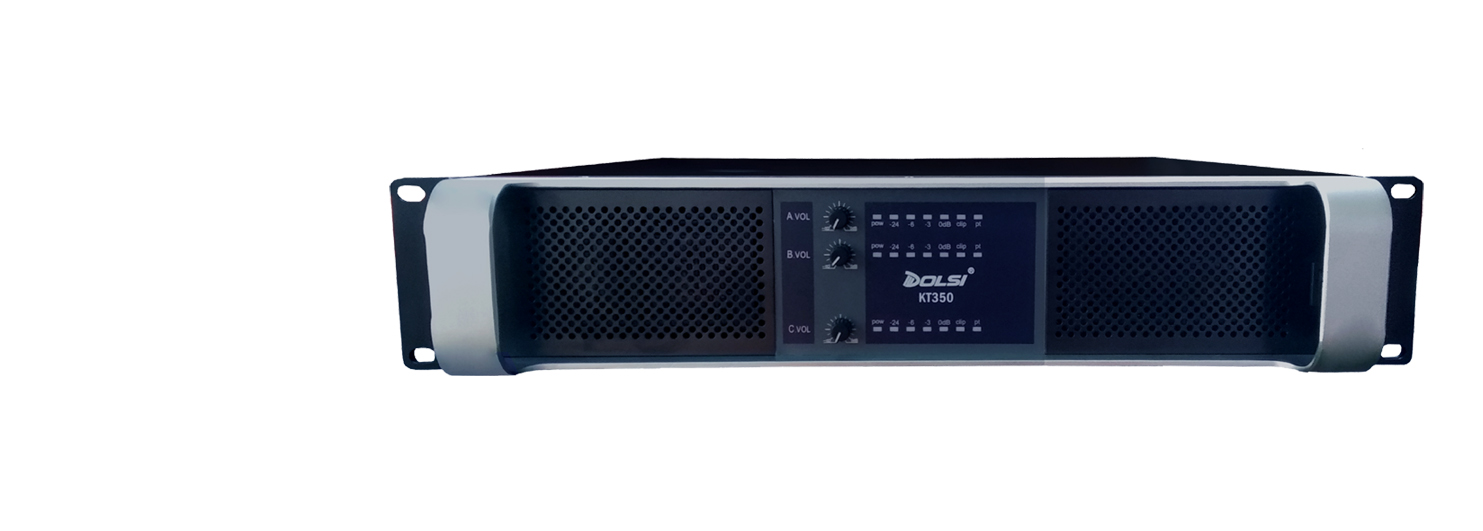

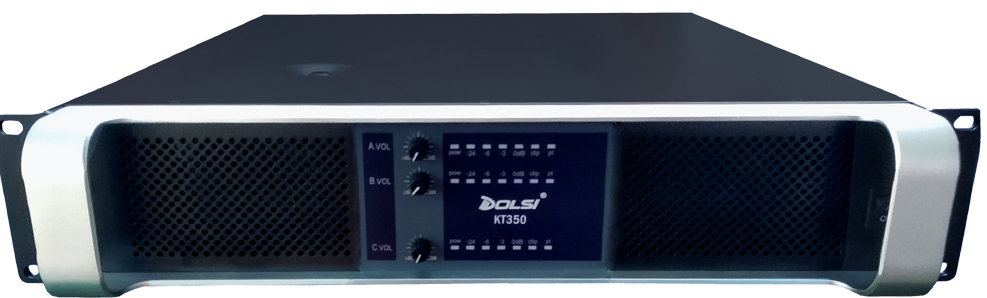

KT Series 3 Channel Class H Power Amplifier
    Publish time 2020-03-12 14:08
KT Series 3 Channel Class H Power Amplifier
KT SERIES 3 Channel

3 channel 350-1500 watt 8 ohm Per Channel Class H High Stability Power Amplifier


. Built with well selected components and parts,ensuring good quality and stability.
. Air flow from the front to the back, ensuring good cooling to the system.
. Fit the user's application in special demand for 3 channel amplifier.

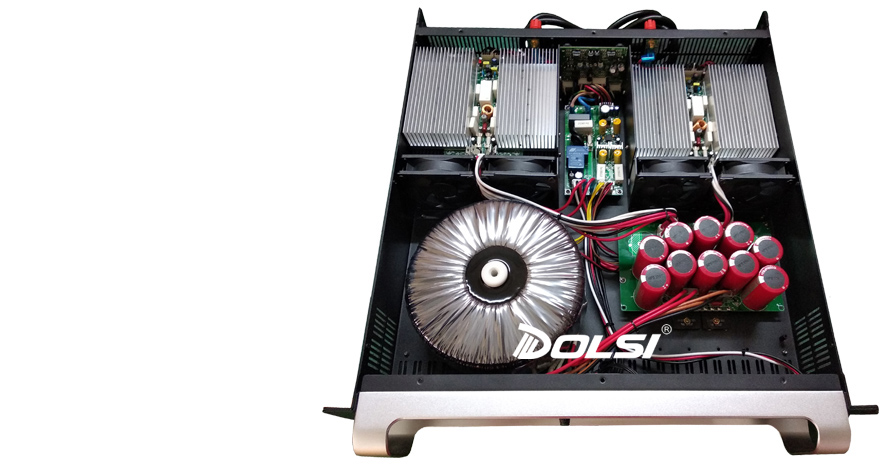

. Professional construction of the circuit board and neat internal layout.
. Nice workmanship of the whole device.
. Strong and sufficient output power value.
. Nice sound effect.



                                         Specifications

Model No. KT350 KT3480 KT3510 KT3612 KT3815
Channel Number 3 channel 3 channel 3 channel 3 channel 3 channel
8Ω stereo output power  3x500W 2x400W+800W 2x500W+1000W 2x600W+1200W 2x800W+1500W
4Ω stereo output power  3x750W 2x580W+1100W 2x750W+1500W 2x890W+1650W 2x1100W+2100W
S/N Ratio  105dB 105dB 105dB 105dB 105dB
Slew rate 17V/uS 17V/uS 17V/uS 17V/uS 17V/uS
 Input sensitivity 0.775V
Frequency Response 20--20000Hz,+0/-0.5dB
THD <0.04%@1kHz, 8 ohm
Damping Factor ≥290 (8 ohm),10Hz-400Hz
Cross-talk >70dB @ 1KHz
 Input Impedance balanced 20K ohm,  Non-balanced 10K ohm
Cooling Way Second class strong tunnel type cooling, air flowing from front to back
Protections protections against short circuit ,over-load, overheat, direct current, radio-interference , on/off switching, muting, and amplitude limit.
Power Supply AC 220-250V, 50/60Hz
Dimensions (WxHxD) 483x89x485mm
 Net weight 21.5 23.3 24.2 25.5 26







Product Features:

. 3 channel Class H power amplifier with powerful output
. Well selected materials and components
. Fully automatic protections against short circuit ,over-load, overheat, direct current, radio-interference ,   on/off switching, muting, and amplitude limit.
. Nice sound quality with strong low frequency, wider mid level and genuine treble.
 . Good choice to use for live show or performance, KTV, bar, light bar, meeting room, theater, etc.
