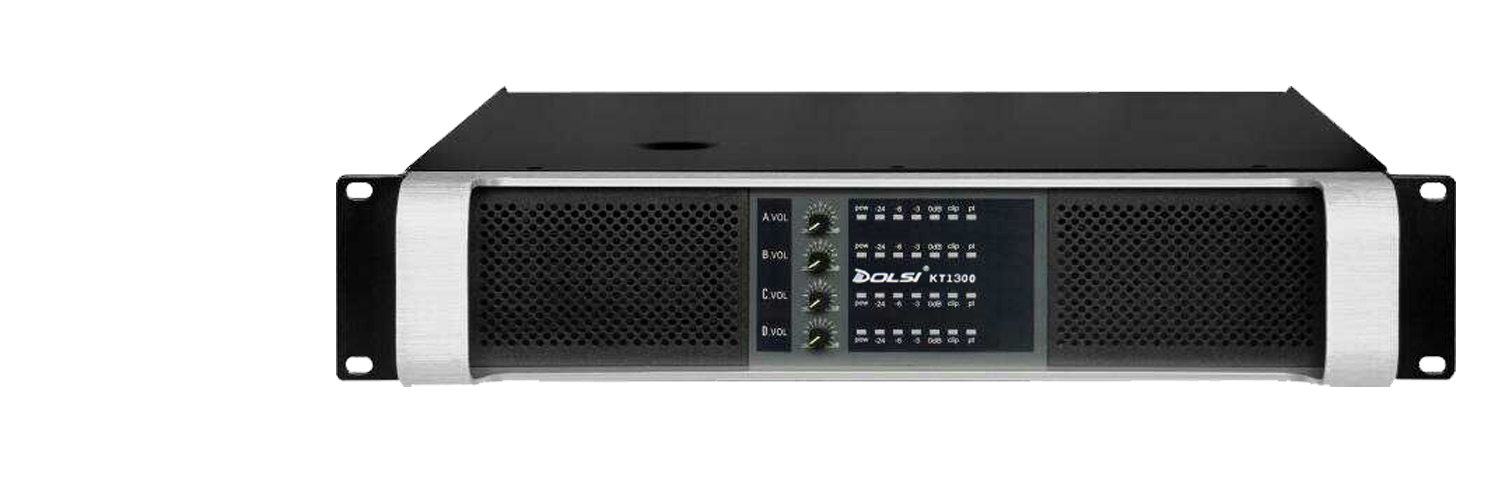

KT Series 4 channel Class H High Stablility Power Amplifier
    Publish time 2020-03-12 16:26
KT Series 4 channel Class H High Stablility Power Amplifier
KT SERIES 4 Channel

4 channel 600-1300 watt 8 ohm Per Channel Class H High Stability Power Amplifier


. Built with well selected components and parts,ensuring good quality and stability.
. Air flow from the front to the back, ensuring good cooling to the system.
. Fit the user's application in special demand for 4 channel amplifier.

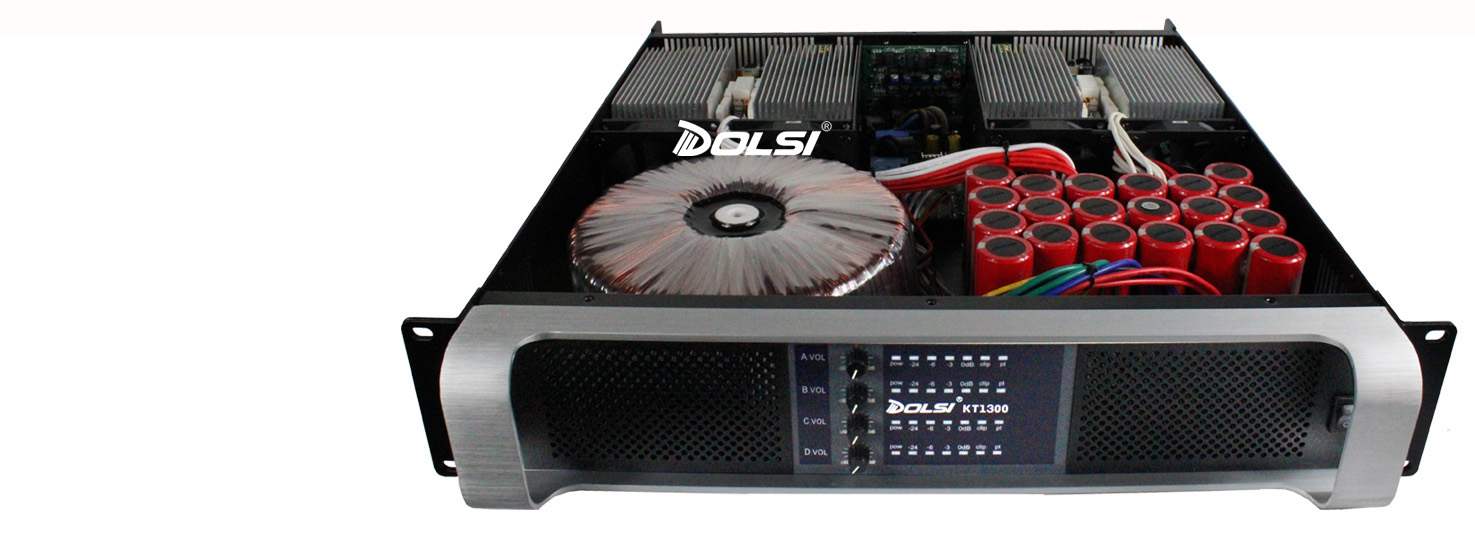

. Professional construction of the circuit board and neat internal layout.
. Nice workmanship of the whole device.
. Strong and sufficient output power value.
. Nice sound effect.




                                   Specifications

Model No. KT-600 KT-800 KT-1000 KT-1300
Channel Number 4 channel 4 channel 4 channel 4 channel
8Ω stereo output power  4x600W 4x800W 4x1000W 4x1300W
4Ω stereo output power  4x890W 4x1100W 4x1500W 4x1820W
S/N Ratio  105dB 105dB 103dB 102dB
Slew rate 17V/uS 25V/uS 28V/uS 32V/uS
 Input sensitivity 0.775V
Frequency Response 20--20000Hz,+0/-0.5dB
THD <0.04%@1kHz, 8 ohm
Damping Factor ≥290 (8 ohm),10Hz-400Hz
Cross-talk >70dB @ 1KHz
 Input Impedance balanced 20K ohm,  Non-balanced 10K ohm
Cooling Way Second class strong tunnel type cooling, air flowing from front to back
Protections protections against short circuit ,over-load, overheat, direct current, radio-interference , on/off switching, muting, and amplitude limit.
Power Supply AC 220-250V, 50/60Hz
Dimensions (WxHxD) 483x89x485 mm
 Net weight 22kg 25kg 26kg 27.2kg









Product Features:

. 4 channel design with powerful output

. Well selected materials and components
 . Fully automatic protections against short circuit ,over-load, overheat, direct current, radio-interference , on/off switching, muting, and amplitude limit.
. Nice sound quality with strong low frequency, wider mid level and genuine treble.
 . Good choice to use for live show or performance, KTV, bar, light bar, meeting room, theater, etc.
