TD Series 2 Channel Class TD High Power Amplifier
    Publish time 2020-03-12 17:41
TD Series 2 Channel Class TD High Power Amplifier
Class TD 2 channel High Stability High Power Professional Amplifier--TD Series

.Long lasting stability and strong endurance
.Class TD circuit design ensure high efficiency
.Fully automatic self-protection functions, not easy to be heated.
.2x600 Watt to 2x1600 Watt at 8 ohm
.Two types of front panel design







Specifications

 Model No. TD600 TD800 TD1300 TD1600
Channel No. 2 channel  2 channel  2 channel  2 channel
Height  88mm (2U) 88mm (2U) 88mm (2U) 132mm (3U)
 Stereo output power at 4Ω 1000Wx2 1300Wx2 2000Wx2 2300Wx2
 Stereo output power at 8Ω 600Wx2 800Wx2 1300Wx2 1600Wx2
 Bridged output power at 8Ω 1800W 2600W 4000W 4600W
 Bridged output power at 4Ω 2500W 3600W 4800W 5200W
 Input sensitivity 0.775V/1.0V/1.4V
 Damping factor                      ≥400:1                          ≥600:1
 Frequency response  20-20000Hz(±0.3dB)
 Slew rate   ≥30V/us
 Cross-talk   ＞70dB@1KHz
 S/N ratio  ＞100dB
 THD+N  ＜0.1%,1KHz
 IMD  ＜0.2%8Ω,1KHz@1W
 Size  (WxHxD) mm 483x88x462 mm 483x88x462mm      483x88x462mm      483x132x463mm
Net Weight 16.10kg 18.20kg 25.25kg 28.50kg

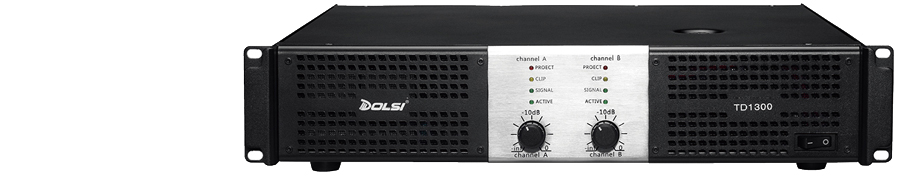

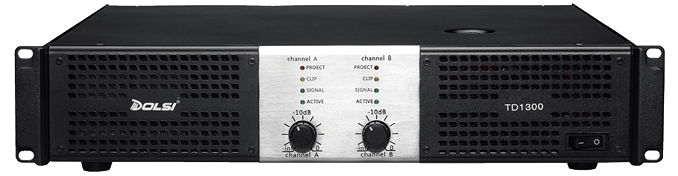

                                                                                                     Front panel version A

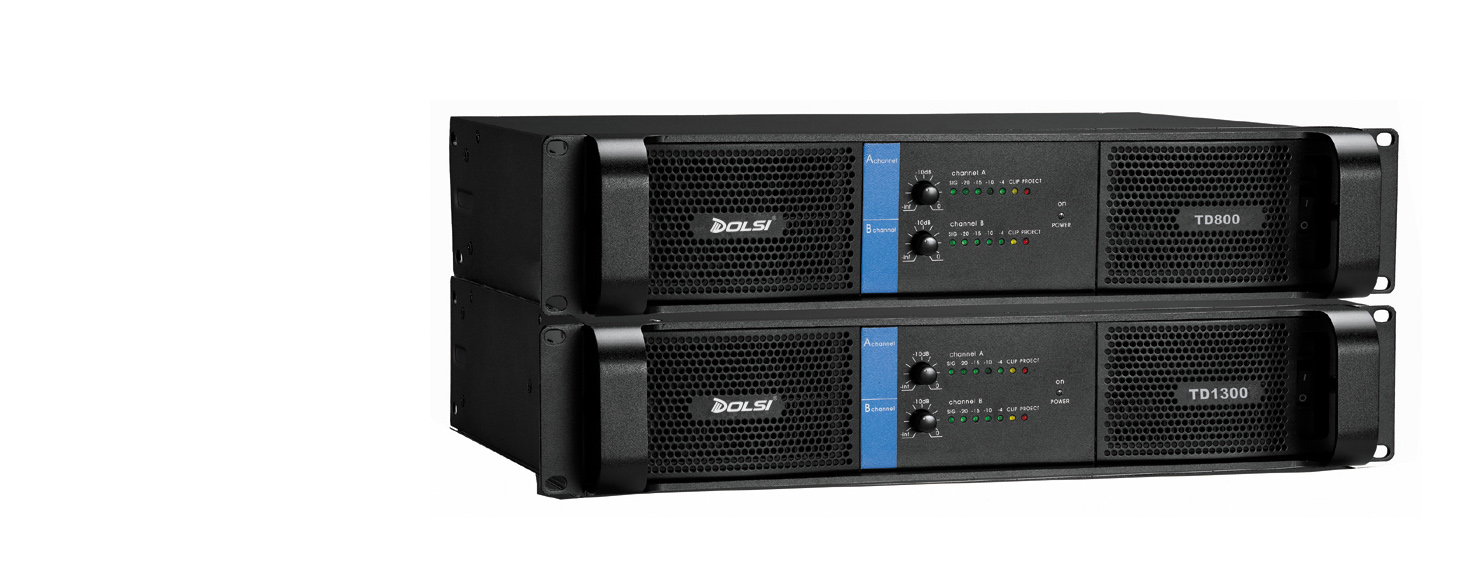

                                                                                                    Front Panel Version B




Product Features:

TD series have new CLASS TD core circuit design and use traditional transformer power supply.
Transparent clear sound at mid-high and deep low frequency, solving the problem of good low
frequency but bad mid-frequency from the  traditional amplifier and good mid-high frequency
but bad low frequency from the switch power supply amplifier. The main features are as the following:

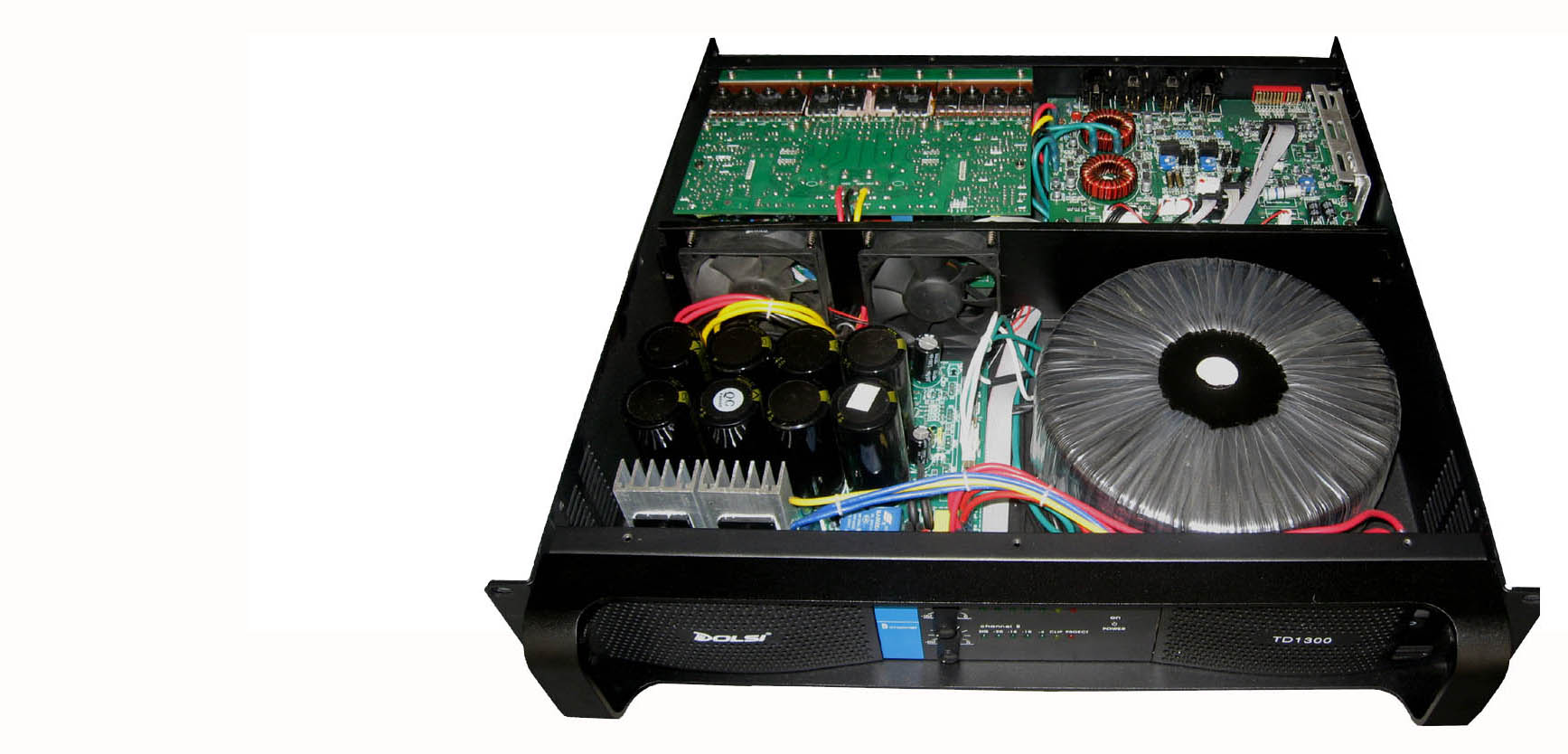

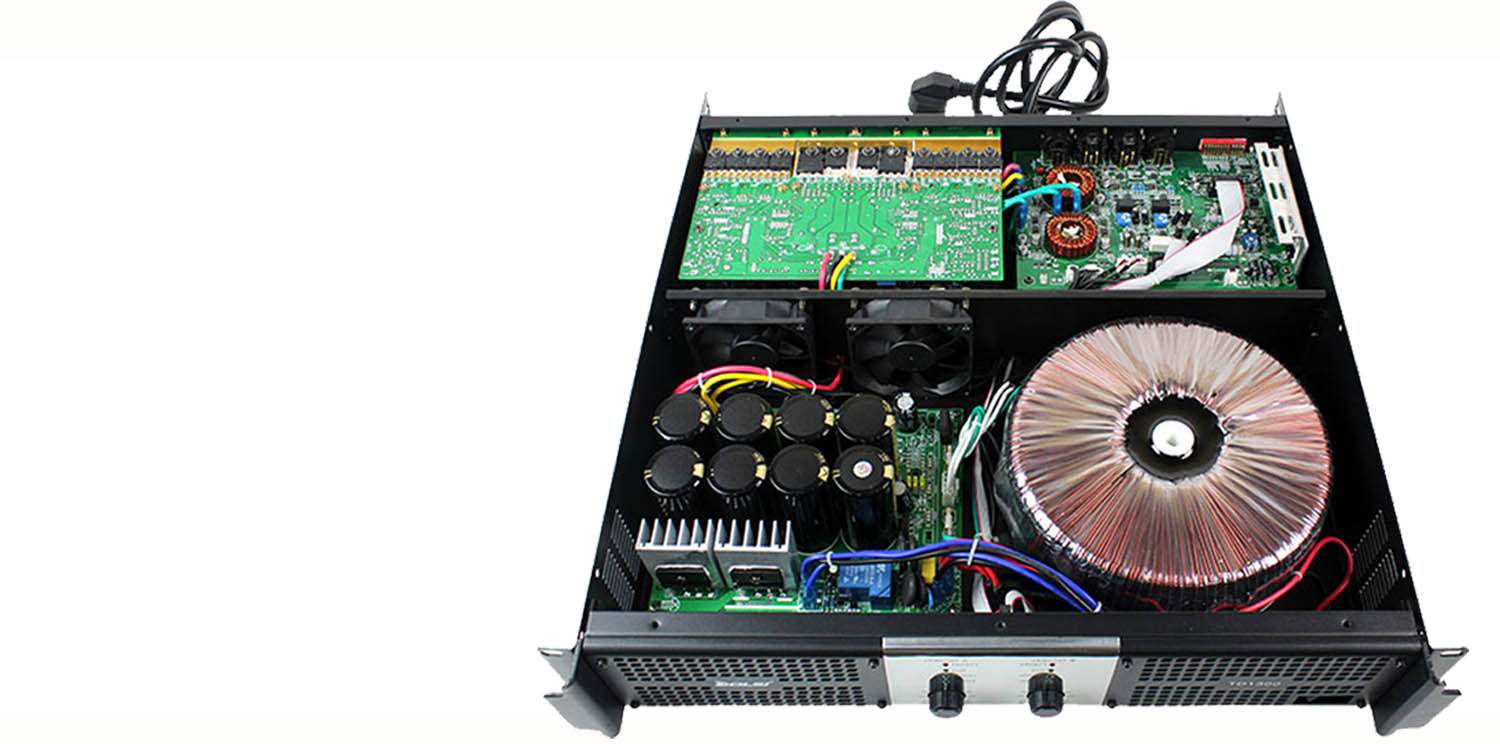

. Unique and reasonable inside component layout, full of sense of science and technology.

. Small size and light weight in 2 U height.  But 3U height at higher output model (2x1600 watt) is available.

. High efficiency, low power consumption and nice sound quality.

.Carefully-selected components, smart and full scale of electronic circuit high-speed protection.

. Mechanical and automatic manufacture process of AI, SMD, PEAK, BACK-FLOW ,ensuring good quality consistency.
.Nice cooling system with quality radiation fin in ribbon shape with shovel teeth, achieving a higher heat dissipation effect.

.Applicable to a variety of music applications.
