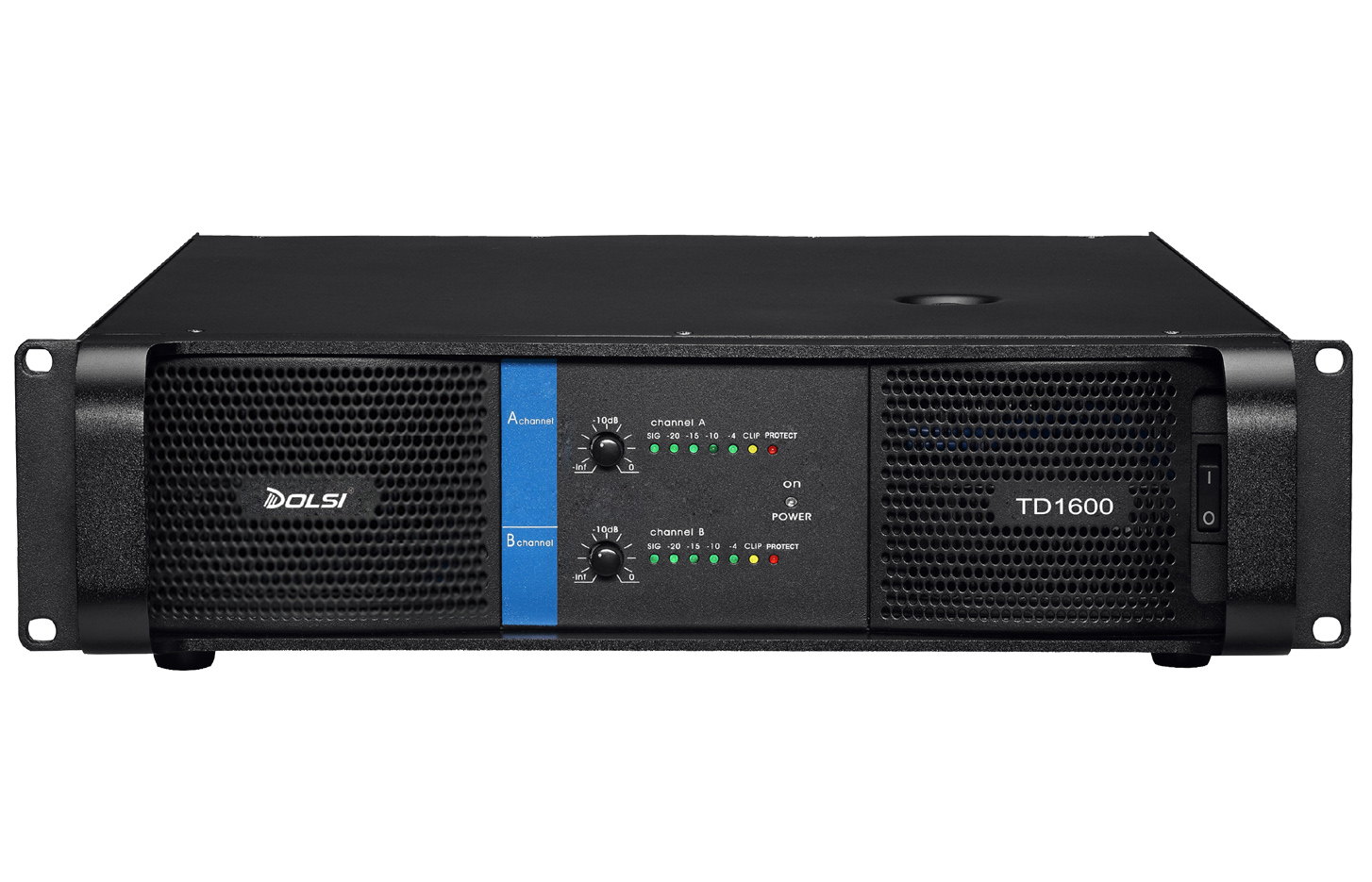

Class TD 2 channel Long-lasting Stability High Efficiency Professional Amplifier Model No. : TD1600 .Long lasting stability and strong endurance .Class TD circuit design ensure high efficiency .Fully automatic self-protection functions, not easy to be heated. .2x1600 watt at 8 ohm
Specifications
Model No.
TD1600
Channel No.
2 channel
Height
132mm (3U)
Stereo output power at4Ω
2300Wx2
Stereo output power at 8Ω
1600Wx2
Bridged output at8Ω
4600W
Bridged output at 4Ω
5200W
Input sensitivity
0.775V/1.0V/1.4V
Damping factor
≥400:1
Frequency response
20-20000Hz(±0.3dB)
Slew rate
≥30V/us
Cross-talk
＞70dB@1KHz
S/N ratio
＞100dB
THD+N
＜0.1%,1KHz
IMD
＜0.2%8Ω,1KHz@1W
Size (WxHxD) mm
483x132x463 mm
Product Features:
TD series have new CLASS TD core circuit design and use traditional transformer power supply.
Transparent clear sound at mid-high and deep low frequency,
solving the problem of good low frequency but bad mid-frequency from
the traditional amplifier and good mid-high frequency but bad low frequency from
the switch power supply amplifier. The main features are as the following:
1. Unique and reasonable inside component layout, full of sense of
science and technology.
2. 3 U height at higher output model (2x1600 watt)
3. High efficiency and nice sound quality.
4. Carefully-selected components, smart and full scale of electronic
circuit high-speed protection.
5. Mechanical and automatic manufacture process of AI, SMD,
PEAK, BACK-FLOW ,ensuring good quality consistency.
6. Nice cooling system with quality radiation fin in ribbon shape with
shovel teeth, achieving a higher heat dissipation effect.
