K Series Full Range Speaker System 8 inch 10 inch 12 inch 15 Inch
Publish time 2020-03-18 14:59

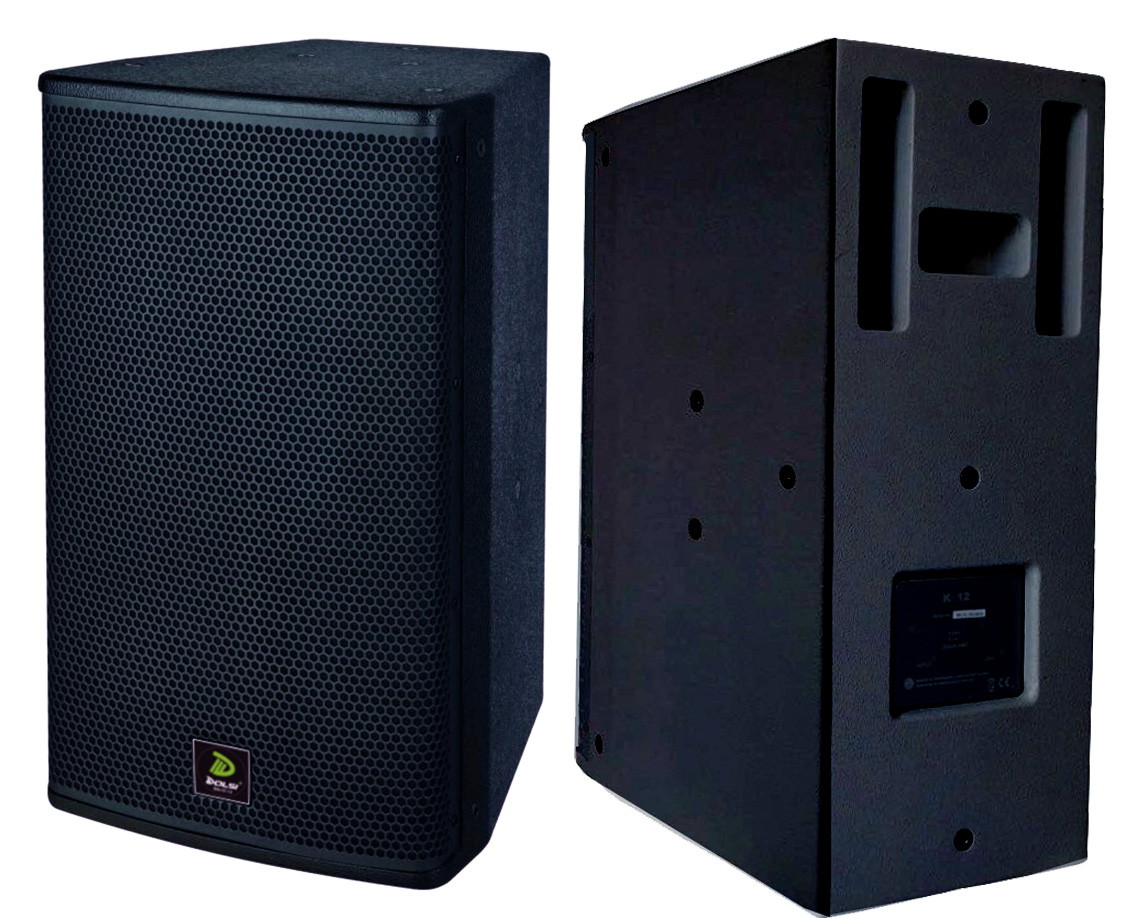

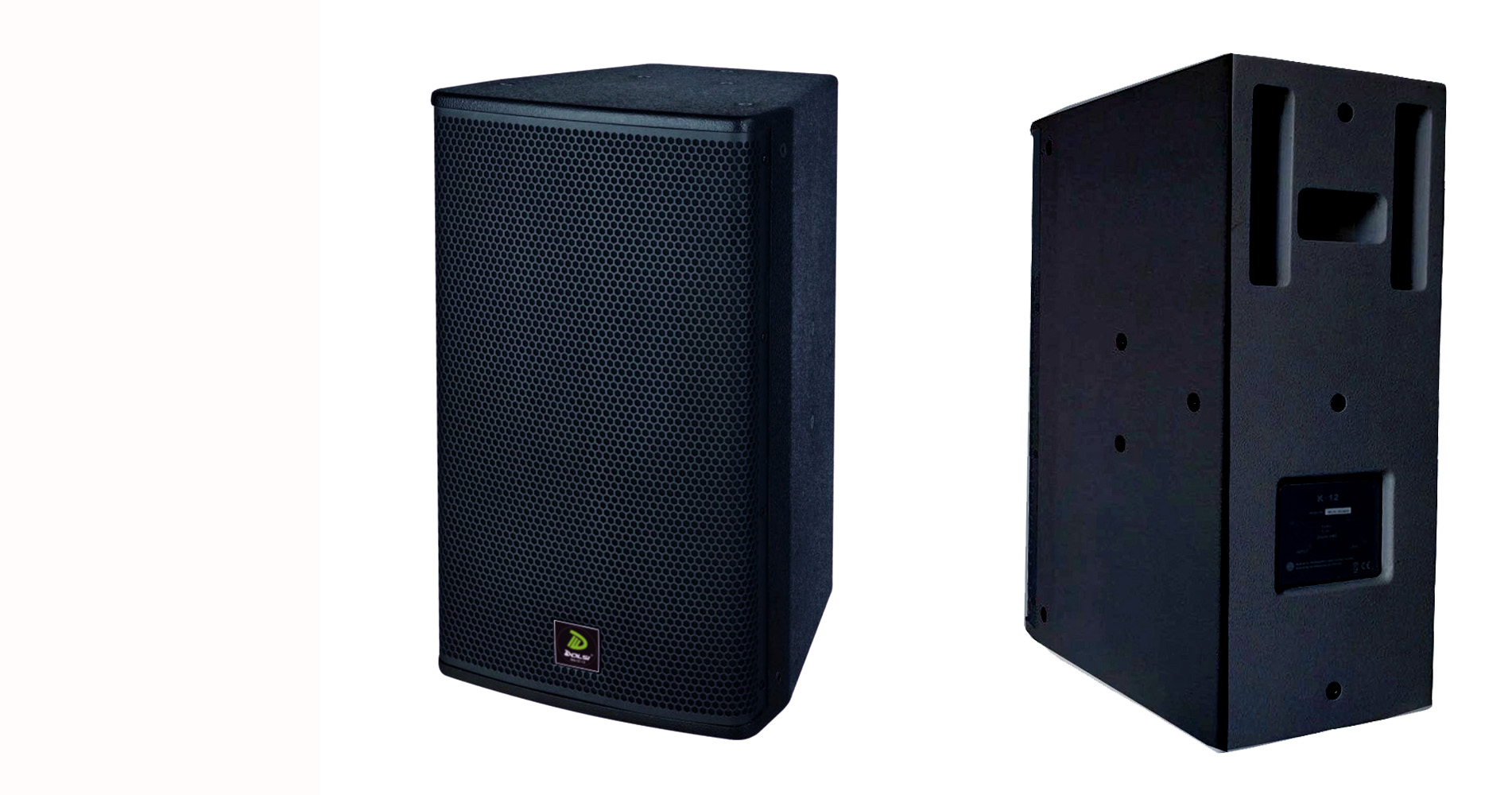

Full Range Speaker System 8 to 15 Inch K Series
. 8 inch, 10 inch, 12 inch and 15 inch driver bass unit available . Good sound effect . High stable performance . High quality polywood box . Well selected quality speaker units.
Specifications
Model No.
K-8
K-10
K-12
K-15
Product type
2-way full range speaker system
2-way full range speaker system
2-way full range speaker system
2-way full range speaker system
Enclosure Material
Polywood
Polywood
Polywood
Polywood
Enclosure color options
white or black
white or black
white or black
white or black
Driver Bass unit
1x8"
1x10"
1x12"
1x15"
Driver Treble unit
1x36mm
1x44mm(1.75")
1x44mm(1.75")
1x44mm(1.75")
Frequency response
45HZ~18KHZ(±3dB)
40HZ~19KHZ(±3dB)
46HZ~18KHZ(±3dB)
46HZ~18KHZ(±3dB)
V×H
90°×60 °
100°×60 °
100°×60 °
100°×60 °
Resistance Input
8Ω
8Ω
8Ω
8Ω
Sensitivity(dB)
99dB
99dB
99dB
99dB
Max. Sound Pressure Level@1m
119dB
125dB
131dB
131dB
Rated Power
200W 8 ohm
300W 8 ohm
400W 8 ohm
450W 8 ohm
Peak power
500W
600W
800W
900W
Dimension(W×H×D)
280×354×310(mm)
365×540×321(mm)
367×600×320(mm)
380×650x420 (mm)
Weight
14kg
18kg
24kg
29kg
Main Features:
. 8 inch, 10 inch, 12 inch and 15 inch driver bass unit available . Good sound effect . High stable performance . High quality polywood box . Well selected quality speaker units.
