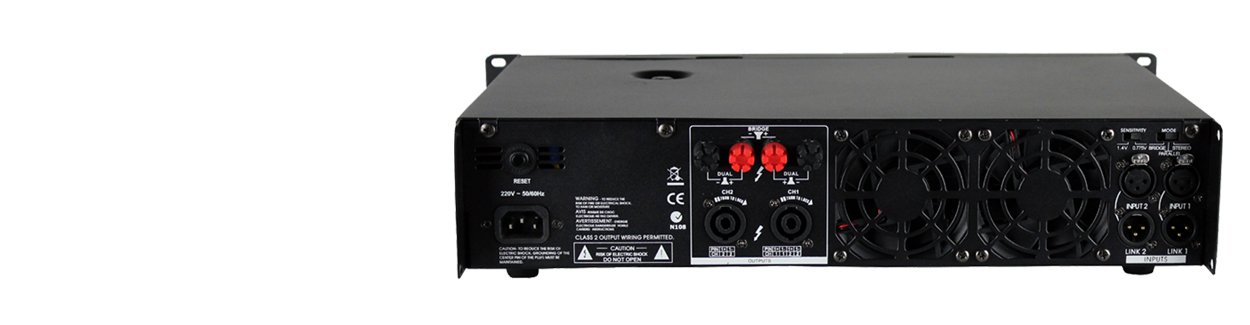

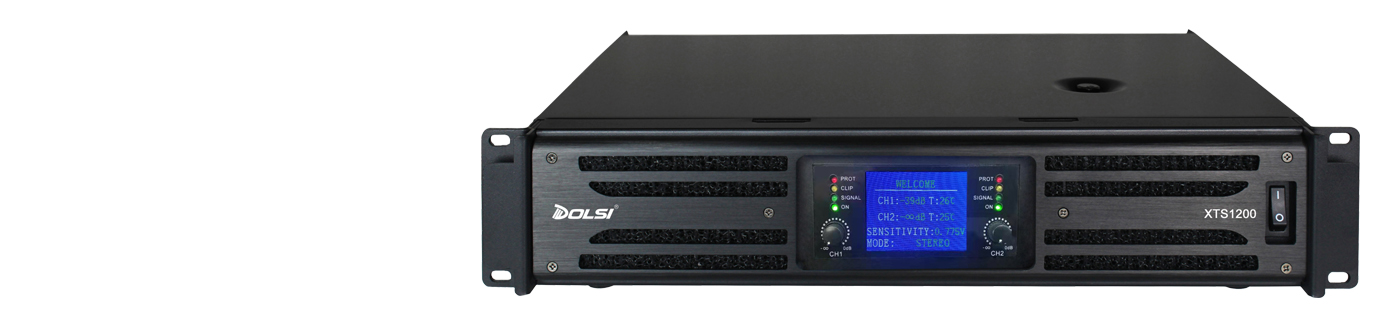

XTS Series Amplifier with TFT Display Screen
    Publish time 2020-03-20 10:21
XTS Series Amplifier with TFT Display Screen
XTS Series

High Stability Power Amplifier with TFT Display Screen


.2x400W/8 ohm to 2x1200W/8 ohm available
.TFT display screen showing temperature, working mode, signal status and sensitivity.
.Excellent stability and good heat cooling system,
. Low distortion rate, genuine and clear sound effect
.Built with well selected quality components and parts
.Nice workmanship and good construction of the board and whole system









                                        Specifications

 Model No.    XTS4000    XTS6000    XTS8000  XTS10000  XTS12000
Channel number 2  2  2 2  2
Height  88mm (2U) 88mm (2U) 88mm (2U) 88mm (2U) 88mm (2U)
Output power stereo 4Ω    600Wx2    900Wx2   1200Wx2   1350Wx2   1800Wx2
Output power stereo 8Ω   400Wx2    600Wx2   800Wx2  1000Wx2  1200Wx2
Bridged output at 8Ω     1200W     1800W    2300W    2700W    3000W
Voltage gain 31dB 33dB 34dB 36dB 36dB
  Inputs   0db(0.775V rms) 1.0V/26dB
 Frequency response   20-20000Hz(±0.3dB)
 Slew rate   ≥10V/us
 Damping factor   ≥200:1
 Cross talk   -75dB@1KHz
 S/N ratio   ＞100dB
 THD+N   ＜0.5%, 20-20K Hz
 IMD    ≥ 0.35%
Protection Protection against short circuit, over-load, over-heat, switch on/off and radio frequency interference or mismatched load.
 Dimensions (WxHxD) 483x88x360mm 483x88x360mm 483x88x360mm 483x88x360mm 483x88x360mm
Net Weight 12.60kg 13.20kg 14.50kg 15.30kg 20.50kg






Product Features:

XTS Series are the amplifiers with efficient and stable Class-H circuit optimized by DOLSI team. The harmonic distortion, inter-modulation distortion and transient inter-modulation distortion all decrease to the lowest level by adding an efficient function of signal conversion, which brings a perfect amplification to the sound. Integrated component layout, strong and compact structure, well-crafted workmanship. All these enable outstanding performance in a variety of application including small meeting room, KTV room or large stadium, vocal concert, etc.
The main features are as the following:

. Unique, novel and elegant design
. TFT display screen showing temperature, working mode, signal status and sensitivity.
. Small size, light weight but high efficiency and high quality sound.
. Carefully-selected high quality components. 100% quality inspection from material to finished product.
. Full protection against short circuit, over-load, over-heat, mismatch, switch on/off and radio frequency interference.
. Air force cooling system and automatic speed fan to ensure long-lasting work stability.
.Ground-lift technology.
.Carefully tested by professional AP testing machine to ensure the consistency and reliability.
